Dispose of unwanted papers with HP shredders. The HP AF1009 is a micro-cut shredder that ensures your information will be securely deleted.

https://hpcopia.ycgdigital.es/wp-content/uploads/2020/11/AF1009.m4v


Read more

When searching for a shredder, consider two main characteristics: its safety features and its capacity to shred a large volume of papers. The micro-cut shredder is perfect for shredding any personal or confidential documents you may have.

The AF 1009 shreds paper into small pieces and ensures a higher level of security compared to a cross-cut shredder. If you are concerned about the safety of the shredder with your kids or family around, you can put those worries to rest. It features an auto-stop sensor function that guarantees the safety of your loved ones around the machine. If you are in need of a safe and efficient shredder, this model is the one for you!

•
  Auto & Manual Feed Microcut
•
  Shred capacity of 100 sheets automatically & 9 sheets manually
•
  Shreds credit cards & staples

Shredder Specifications

• Cut Type:  Microcut
• Shred Size: 4.3 mm x 12 mm
• Auto Start/Stop Function: Photo Sensor
• Auto Stop:  Yes
• LED Function Lights: Ready, Overheat, Overload, Bin Full
• Motor:  AC, 0.86 hp
• Speed (seconds per sheet):  2.6 sps
• Basket Full Indicator:  LED
• Basket Capacity:  4.5 Gallons / Pullout Bin.
• Warranty/Cutter Warranty : 1 year / 3 year
• Duty Cycle (Auto Feed): 10 min On / 40 min off
• Noise Level (dB):  68 dB
• Shreds Credit Cards:  Yes
• Casters: Yes

weight and dimensions

• Unit Dimensions (HxWxD): 19.78” x 13.03” x 8.6”
• Unit Weight: 18.3 lbs.

manuals & documents

• English user manual: Download here

FAQ

The shredder won’t operate or will not turn on

1. Check to make sure the shredder is plugged in.
2. Make sure the shredder bin is securely in place.

The shredder suddenly stops in the middle of a shred cycle

1. Check to see if you exceeded the maximum sheet count of 9. If so, depress the “Reverse” button to clear out the paper at the shred opening.
2. The “Overheat” feature has turned on. Wait 30-40 minutes for the shredder to cool down before you resume shredding.

Paper Jams and how to remove them

Depress the “Reverse” button and carefully pull out the paper.

The shredder makes a terrible noise and is running sluggishly

1. If the shredder is making more noise than usual, there could be something internally wrong with it. The most common reason for this is a broken gear. Gears can break from exceeding the paper at a pass count capacity and can be replaced by an Authorized Service Center.
2. IMPORTANT: Never apply petroleum based-oils such as WD-40 or spray canned air into the shredder. The use of these products could damage the shredder. Our shredders do not need to be lubricated.

Why does my shredder only work in Reverse?

This likely has to do with the Auto Run Sensor not being engaged correctly. Make sure no paper is inserted in the throat area. Turn the shredder On and Off. If that does not resolve the situation, please call Customer Support at 833-523-0800.

The Auto Paper Sensor is not being engaged and won’t shred

1. Make sure what you are shredding is placed in the center of the opening . This is where the sensor is located.
2. Make sure no paper is located under the sensor or is interfering with the sensor. If you see any pieces of paper in the throat, unplug the shredder and remove the pieces.

Understanding the LED Message Center

• Overheat -After a period of constant running, the shredder will experience increased heat which will turn the shredder off . This is normal. Let the shredder rest for 30-40 minutes and then continue to shred .
• Overload – The overload LED indicates an excessive amount of paper has been inserted into the manual shred slot. Depress the “Reverse” button and gently remove the paper. To avoid this, make sure no more than 9 sheets are being shred at a time.
• Bin full – Indicates the bin is full and needs to be emptied. Reinsert the clean bin and continue to shred.

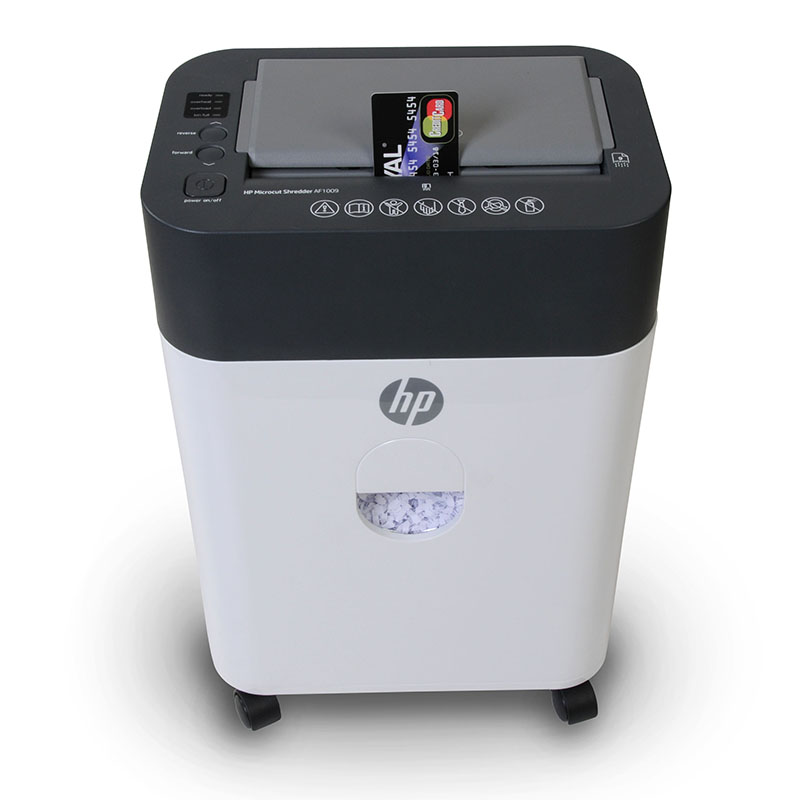

Can I shred Credit Cards, CD’s, Paper Clips or Staples?

1. Credit cards –  Only plastic credit cards can be shred.  Be sure to insert credit cards into the
   center of the manual shred slot.
2. CD’s –  This shredder does not accept CD’s.
3. Paper Clips and Staples –  These items should never be shredded in the Automatic Feed Op ening.
   Small paper clips and staples can be shred in the Manual Feed Slot.

Can I shred labels?

Unfortunately , you cannot. Labels will harm the internal mechanism of the shredder.

What is the warranty on my shredder?

There is a full one-year parts and labor warranty and a three-year warranty on the cutting blades.
